D78A10C | WIX | Pleated Paper Element | OFS # 97-01-1306
***Image may vary***

D78A10C | WIX | Pleated Paper Element | OFS # 97-01-1306

  • $0.00

CALL FOR PRICE

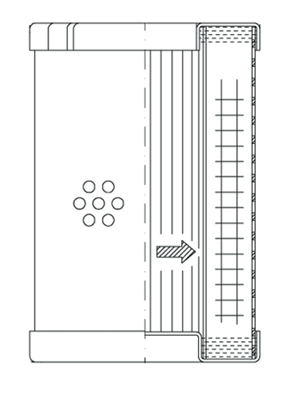

PLEATED PAPER ELEMENT

Lead Time: Please Call


Performance Data
Micron Rating: 10.00 NOMINAL

Beta Rating:

Collapse Pressure Rating: 145 PSID

Maximum Temperature:

Direction of Flow: OUTSIDE->IN



Dimensional Specifications
Outer Diameter, Top: 2.36 IN (59.94 MM)

Outer Diameter, Bottom: 2.36 IN (59.94 MM)

Inner Diameter, Top: 1.06 IN (26.92 MM)

Inner Diameter, Bottom:

Length: 9.80 IN (248.92 MM)

Thread:



Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube:

Type of Media: PAPER

Filter Area:

Plating: PLATED STEEL

Outer Jacket: NONE

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight:
