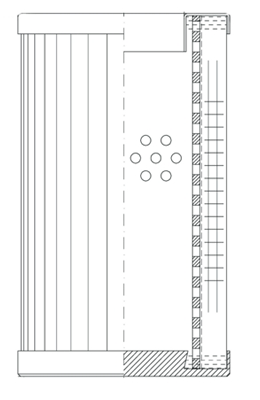

D62B10FB | WIX | Pleated Micro-Glass Element | OFS # 97-05-0643
***Image may vary***

D62B10FB | WIX | OFS # 97-05-0643

  • $186.67


Performance Data
Micron Rating: 10.00 ABSOLUTE

Beta Rating: B10 = 200

Collapse Pressure Rating: 3000 PSID

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 50 PSID



Dimensional Specifications
Outer Diameter, Top: 3.33 IN (84.58 MM)

Outer Diameter, Bottom: 3.33 IN (84.58 MM)

Inner Diameter, Top: 1.86 IN (47.24 MM)

Inner Diameter, Bottom:

Length: 10.12 IN (257.05 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: NONE

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: MICROGLASS

Filter Area: SQ.IN.

Plating: ZINC PLATED

Outer Jacket: NONE - NONE

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 1.80 LB (0.82 KG)
