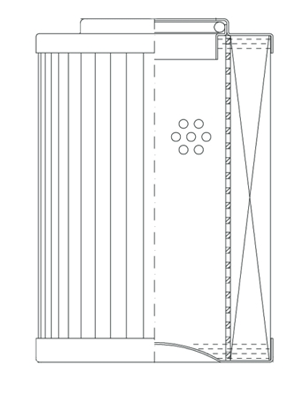

D60E10GAV | WIX | OFS # 97-05-2211

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 10.00 ABSOLUTE

Beta Rating: B25=200

Collapse Pressure Rating: 450 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Dimensional Specifications
Outer Diameter, Top: 3.10 IN (78.74 MM)

Outer Diameter, Bottom: 3.09 IN (78.49 MM)

Inner Diameter, Top: 1.60 IN (40.64 MM)

Inner Diameter, Bottom:

Length: 15.75 IN (400.05 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: CORROSION RESISTANT STEEL

Center Tube: CORROSION RESISTANT STEEL

Type of Media: MICROGLASS

Filter Area: SQ.IN.

Plating: ZINC PLATED

Outer Jacket: NONE

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight:
