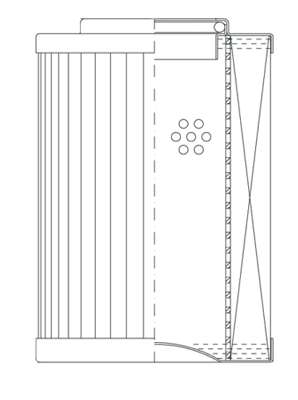

D57B10EV | WIX | Pleated Synthetic Element | OFS # 97-05-1788
***Image may vary***

D57B10EV | WIX | Pleated Synthetic Element | OFS # 97-05-1788

  • $91.43


Performance Data
Micron Rating: 10.00 ABSOLUTE

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 50 PSID



Dimensional Specifications
Outer Diameter, Top: 1.75 IN (44.45 MM)

Outer Diameter, Bottom: 1.75 IN (44.45 MM)

Inner Diameter, Top: 0.87 IN (22.10 MM)

Inner Diameter, Bottom:

Length: 6.85 IN (173.99 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: SYNTHETIC

Filter Area: SQ.IN.

Plating: ZINC PLATED

Outer Jacket: NONE

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight:
