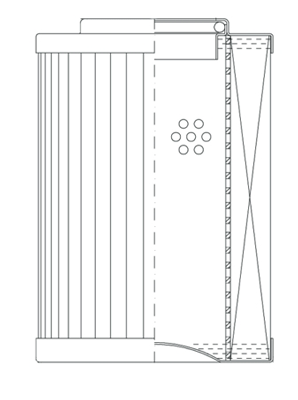

D41B05GV | WIX | Pleated Micro-Glass Element | OFS # 97-05-0109
***Image may vary***

D41B05GV | WIX | OFS # 97-05-0109

  • $98.29


Lead Time: Usually Ships In 24-28 Hours


Performance Data
Micron Rating: 6.00 ABSOLUTE

Beta Rating: B6=200

Collapse Pressure Rating: 100 PSID

Maximum Temperature: 275 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 50 PSID

Additional Notes: MADE IN U.S.A.



Dimensional Specifications
Outer Diameter, Top: 3.63 IN (92.20 MM)

Outer Diameter, Bottom: 3.63 IN (92.20 MM)

Inner Diameter, Top: 1.94 IN (49.28 MM)

Inner Diameter, Bottom:

Length: 6.50 IN (165.10 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: VITON

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: MICROGLASS

Filter Area: SQ.IN.

Plating: ZINC PLATED

Outer Jacket: NONE

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight:
