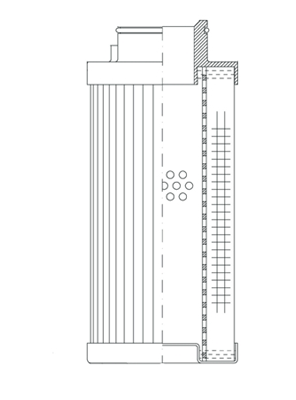

D13B25GAV | WIX | OFS # 97-05-3905

Performance Data
Micron Rating: 25.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature: 248F

Direction of Flow: OUTSIDE->IN

Dimensional Specifications
Outer Diameter, Top: 2.09 IN (53.09 MM)

Outer Diameter, Bottom: 2.09 IN (53.09 MM)

Inner Diameter, Top: 1.24 IN (31.50 MM)

Inner Diameter, Bottom:

Length: 8.66 IN (219.96 MM)

Thread:

Physical Specifications
Handle: NONE

Seal Material: VITON

Type of Adhesive:

Type of Endcap:

Center Tube:

Type of Media: MICROGLASS

Filter Area: SQ. IN.

Plating:

Outer Jacket: NONE

Configuration:

Packaging Specifications
Number per Carton: 1

Carton Weight:
