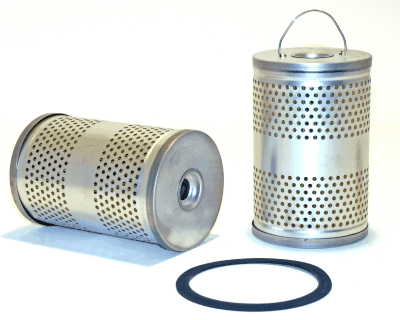

CW64MP | WIX | Fuel Filter Element | OFS # 97-28-1898

FUEL FILTER ELEMENT

Performance Data
Micron Rating: 0.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 3.50 IN (88.90 MM)

Outer Diameter, Bottom: 3.50 IN (88.90 MM)

Inner Diameter, Top: 0.54 IN (13.72 MM)

Inner Diameter, Bottom: 0.54 IN (13.72 MM)

Length: 5.53 IN (140.46 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube:

Type of Media:

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: DOUBLE OPEN ENDS

Packaging Specifications
Number per Carton: 1

Carton Weight: 7.80 LB (3.54 KG)
