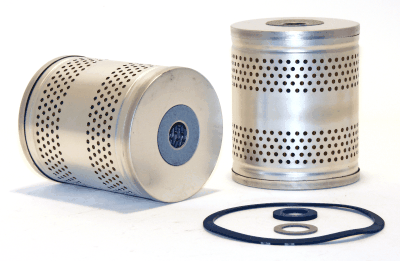

CW475MP | WIX | Pleated Paper Element | OFS # 97-01-0861
***Image may vary***

CW475MP | WIX | Pleated Paper Element | OFS # 97-01-0861

  • $7.87


PLEATED PAPER ELEMENT

Lead Time: Usually Ships In 24-28 Hours


Performance Data
Micron Rating: 25.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 80 PSI

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE>IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 3.94 IN (100.08 MM)

Outer Diameter, Bottom: 3.94 IN (100.08 MM)

Inner Diameter, Top: 0.72 IN (18.29 MM)

Inner Diameter, Bottom: 0.72 IN (18.29 MM)

Length: 4.81 IN (122.17 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - METAL

Configuration: DOUBLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 0.80 LB (0.36 KG)
