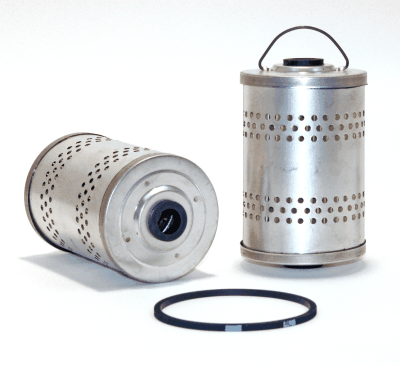

CW1173MP | WIX | Pleated Paper Element | OFS # 97-01-0890
***Image may vary***

CW1173MP | WIX | Pleated Paper Element | OFS # 97-01-0890

  • $12.96


PLEATED PAPER ELEMENT

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 2.55 IN (64.77 MM)

Outer Diameter, Bottom: 2.55 IN (64.77 MM)

Inner Diameter, Top: 0.54 IN (13.72 MM)

Inner Diameter, Bottom: 0.54 IN (13.72 MM)

Length: 4.53 IN (115.06 MM)

Thread: NONE



Physical Specifications
Handle: YES

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - CARDBOARD

Configuration: DOUBLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 0.30 LB (0.14 KG)
