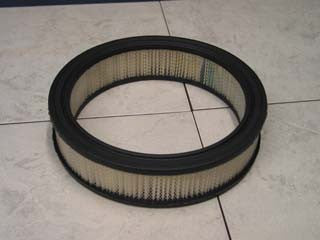

CA2657 - FRAM   - Online Filter Supply Replacement Part # 97-22-0664
***Image may vary***

CA2657 - FRAM - OFS # 97-22-0664

  • $8.00


Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 175 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 9.76 IN (247.90 MM)

Outer Diameter, Bottom: 9.76 IN (247.90 MM)

Inner Diameter, Top: 7.94 IN (201.68 MM)

Inner Diameter, Bottom: 7.94 IN (201.68 MM)

Length: 2.27 IN (57.66 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: MOLDED

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 6.60 LB (2.99 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
