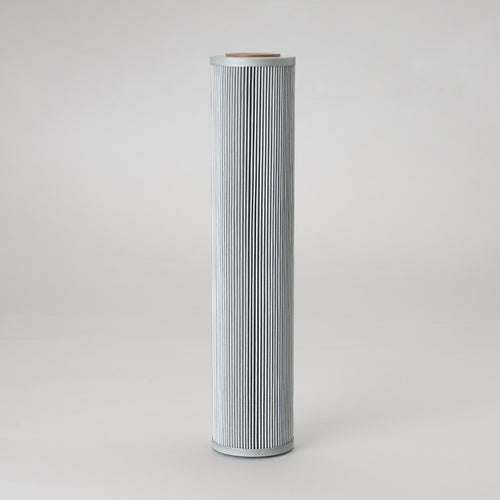

C925799 | Commercial/Parke | Micro-Glass Filter | OFS # 97-F9700-18K6B
Filter Availability: Usually Ships In 24-48 Hours
Filter Type: Pleated Micro-Glass Filter Element
Performance Data
Micron Rating: 6.00 ABSOLUTE
Beta Rating: B6 = 200
Collapse Pressure Rating: 150 PSID
Maximum Temperature: 250 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 50 PSID
Dimensional Specifications
Outer Diameter, Top: 3.90 IN (99.06 MM)
Outer Diameter, Bottom: 3.90 IN (99.06 MM)
Inner Diameter, Top: 1.60 IN (40.64 MM)
Inner Diameter, Bottom: 1.60 IN (40.64 MM)
Length: 18.30 IN (464.82 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: EPOXY
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: MICROGLASS
Filter Area: SQ.IN.
Plating: ZINC PLATED
Outer Jacket: NONE - NONE
Configuration: DOUBLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 6.00 LB (2.72 KG)
** There Is A Minimum Order Amount Of $25.00 **
**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacturer parts, Names and part # used for cross reference only.**
