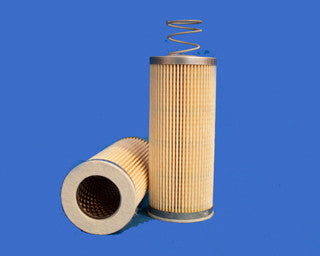

C717/1 - MANN & HUMMEL - OFS # 97-22-1705

AVAILABILITY - Usually ships in 24-48 hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 2.50 IN (63.50 MM)

Outer Diameter, Bottom: 2.50 IN (63.50 MM)

Inner Diameter, Top: 1.50 IN (38.10 MM)

Inner Diameter, Bottom:

Length: 5.88 IN (149.35 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: FELT

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: NONE - NONE

Configuration:

Packaging Specifications
Number per Carton: 1

Carton Weight: 10.00 LB (4.54 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
