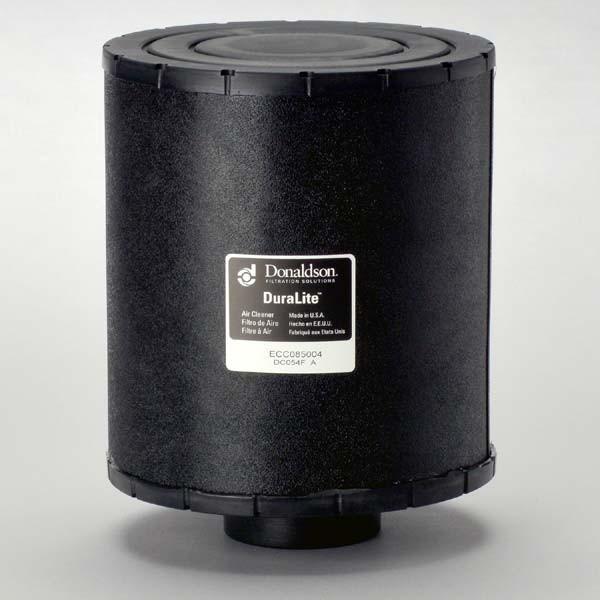

C085004 | Donaldson | Air Filter Primary Duralite | OFS # 97-22-0459

Lead Time: Usually Ships In 24-48 Hours

Brand - DuraLite
Efficiency Test Std - ISO 5011
Family ECC
Rated Flow HR - 243.67 CFM
Rated Flow LR - 169.51 CFM
Rated Flow MR - 204.83 CFM
Restriction HR - 7.99 MM H2O
Restriction LR - 4.02 MM H2O
Restriction MR - 5.98 MM H2O
Style - Round
Type - Primary

Performance Data
Micron Rating:  0.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  8.50 IN   (215.90 MM)

Outer Diameter, Bottom:  8.50 IN   (215.90 MM)

Inner Diameter, Top:  2.50 IN   (63.50 MM)

Inner Diameter, Bottom:  2.50 IN   (63.50 MM)

Length:  9.50 IN   (241.30 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:

Type of Media:

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  YES

Configuration:  DOUBLE OPEN ENDS

Packaging Specifications
Number per Carton:  1

Carton Weight:  3.40 LB   (1.54 KG)

**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacturer parts, Names and part # used for cross reference only.**
