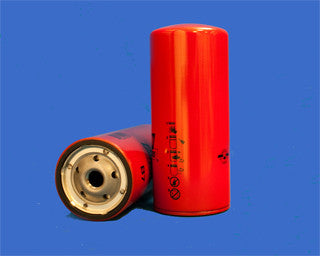

BT355 - BALDWIN   - Online Filter Supply Replacement Part # 97-25-0560
***Image may vary***

BT355 - BALDWIN - OFS # 97-25-0560

  • $9.55


AVAILABILITY - Usually ships in 24-48 hours

Performance Data
Micron Rating:  20.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  75 PSID

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Additional Notes:  CONTAINS 20 PSID BY-PASS VALVE



Dimensional Specifications
Outer Diameter, Top:  4.26 IN   (108.20 MM)

Outer Diameter, Bottom:  4.26 IN   (108.20 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length:  5.22 IN   (132.59 MM)

Thread:  1-12 UNF-2B



Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  ELECTROTIN PLATED

Outer Jacket:  YES

Configuration:  SINGLE OPEN SPIN-ON



Packaging Specifications
Number per Carton:  1

Carton Weight:  19.30 LB   (8.75 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangable" with original manufacture parts, Names and part # used for cross reference only.**
