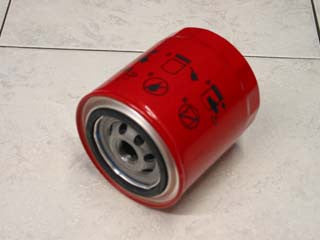

B113 - BALDWIN   - Online Filter Supply Replacement Part # 97-28-0568
***Image may vary***

B113 - BALDWIN - OFS # 97-28-0568

  • $9.49


AVAILABILITY - Usually ships in 24-48 hours

Performance Data
Micron Rating: 25.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 3.31 IN (84.07 MM)

Outer Diameter, Bottom: 3.31 IN (84.07 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 4.02 IN (102.11 MM)

Thread: 3/4-16 UNF-2B



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 12

Carton Weight: 9.80 LB (4.45 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
