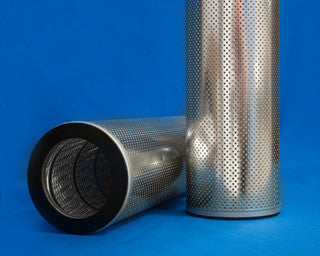

ARH160574 - AIR MAZE - OFS # 97-01-0600
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 4.38 IN (111.25 MM)
Outer Diameter, Bottom: 4.38 IN (111.25 MM)
Inner Diameter, Top: 2.44 IN (61.98 MM)
Inner Diameter, Bottom: 2.44 IN (61.98 MM)
Length: 8.00 IN (203.20 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: ELECTROTIN PLATED
Outer Jacket: YES - METAL
Configuration: DOUBLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 18.20 LB (8.26 KG) **All Online Filter Supply replacement parts are"equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
