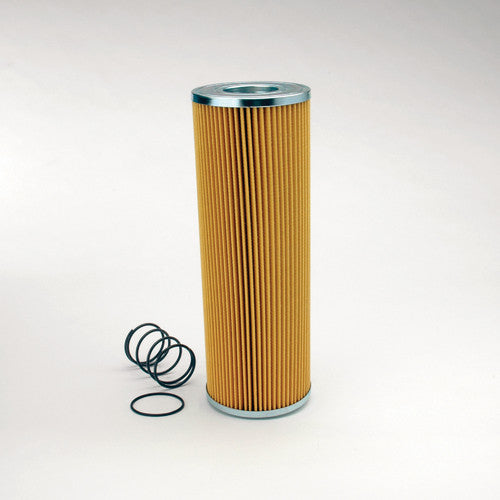

97-28-5667 -

Performance Data
Micron Rating:  0.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  5.51 IN   (139.95 MM)

Outer Diameter, Bottom:  5.51 IN   (139.95 MM)

Inner Diameter, Top:  2.56 IN   (65.02 MM)

Inner Diameter, Bottom:  2.56 IN   (65.02 MM)

Length:  15.75 IN   (400.05 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:

Type of Media:

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  NONE

Configuration:  DOUBLE OPEN ENDS

Packaging Specifications
Number per Carton:  1

Carton Weight:  5.50 LB   (2.49 KG

) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
