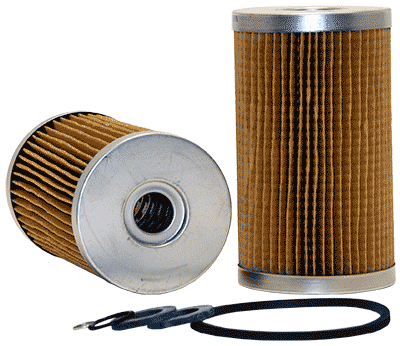

939P | WIX | Pleated Paper Element | OFS # 97-28-1296
***Image may vary***

939P | WIX | Pleated Paper Element | OFS # 97-28-1296

  • $6.19


PLEATED PAPER ELEMENT

Lead Time: Usually Ships In 24-28 Hours


Performance Data
Micron Rating: 20.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 2.90 IN (73.66 MM)

Outer Diameter, Bottom: 2.90 IN (73.66 MM)

Inner Diameter, Top: 0.69 IN (17.53 MM)

Inner Diameter, Bottom: 0.69 IN (17.53 MM)

Length: 5.15 IN (130.81 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: DOUBLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 4.80 LB (2.18 KG)
