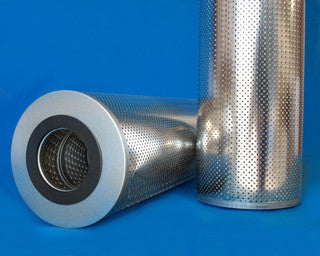

730-5FPB | American Filtr. | OFS # 97-01-0679

QTY PER CARTON:6

Performance Data
Micron Rating: 5.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 100 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 6.00 IN (152.40 MM)

Outer Diameter, Bottom: 6.00 IN (152.40 MM)

Inner Diameter, Top: 2.63 IN (66.80 MM)

Inner Diameter, Bottom: 2.63 IN (66.80 MM)

Length: 30.00 IN (762.00 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: 57 SQ.FT.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - METAL

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 6

Carton Weight 40.00 LB (18.14 KG) | All Online Filter Supply | replacement | parts are | equivalent | to or| interchangeable | with original manufacture parts | Names and part # used for cross reference only. |
