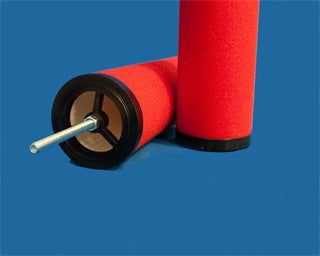

6C25-260 - FINITE - OFS # 97-19-0175

AVAILABILITY - Usually ships in 24-48 hours

Performance Data
Micron Rating: 0.20 ABSOLUTE

Beta Rating: 99.999%

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 180 F

Direction of Flow: INSIDE->OUT

Recommended Changeout Differential Pressure: 15 PSID

Additional Notes: 4" THREADED ROD ON OPEN END. (5/16")

Dimensional Specifications
Outer Diameter, Top: 3.40 IN (86.36 MM)

Outer Diameter, Bottom: 3.40 IN (86.36 MM)

Inner Diameter, Top: 2.27 IN (57.66 MM)

Inner Diameter, Bottom:

Length: 26.35 IN (669.29 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: N/A

Type of Endcap: POLYPROPYLENE

Center Tube: POLYPROPYLENE

Type of Media: MICROGLASS

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES - FOAM

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 6

Carton Weight: 6.00 LB (2.72 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
