Vaccon | 6240272 | OFS # 97-35-0402

in stock

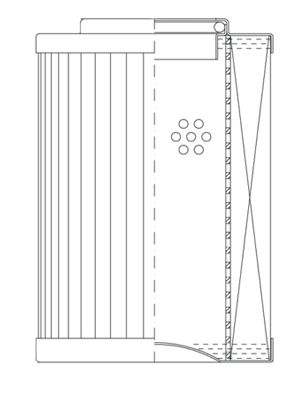

Pleated Micro glass Element

Performance Data
Micron Rating:  5.00 ABSOLUTE

Beta Rating:  B5=200

Collapse Pressure Rating:  435 PSI

Maximum Temperature:  212 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  2.22 IN   (56.39 MM)

Outer Diameter, Bottom:  2.22 IN   (56.39 MM)

Inner Diameter, Top:  1.00 IN   (25.40 MM)

Inner Diameter, Bottom:

Length:  6.69 IN   (169.93 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  VITON

Type of Adhesive:  EPOXY

Type of Endcap:  CORROSION RESISTANT STEEL

Center Tube:  CORROSION RESISTANT STEEL

Type of Media:  MICROGLASS

Filter Area:  SQ.IN.

Plating:  N/A

Outer Jacket:  NONE - NONE

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:  1.00 LB   (0.45 KG) ***All Online Filter Supply replacement parts are equivalent to or interchangeable with original manufacture parts, Names and part # used for cross reference only.***
