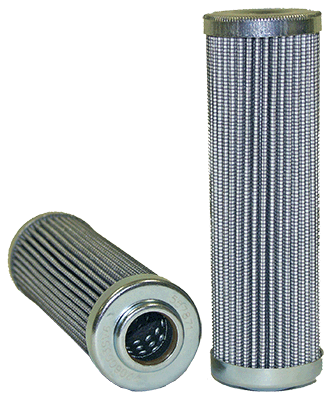

57871 | WIX | Pleated Micro-Glass Element | OFS # 97-05-1544
***Image may vary***

57871 | WIX | OFS # 97-05-1544

  • $33.92


Lead Time: Usually Ships In 24-28 Hours


Performance Data
Micron Rating: 3.00 ABSOLUTE

Beta Rating: B6 = 200

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 300 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 50 PSID



Dimensional Specifications
Outer Diameter, Top: 1.88 IN (47.75 MM)

Outer Diameter, Bottom: 1.88 IN (47.75 MM)

Inner Diameter, Top: 0.88 IN (22.35 MM)

Inner Diameter, Bottom:

Length: 6.06 IN (153.92 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: VITON

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: MICROGLASS

Filter Area: SQ.IN.

Plating: ZINC PLATED

Outer Jacket: NONE - NONE

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 2.00 LB (0.91 KG)
