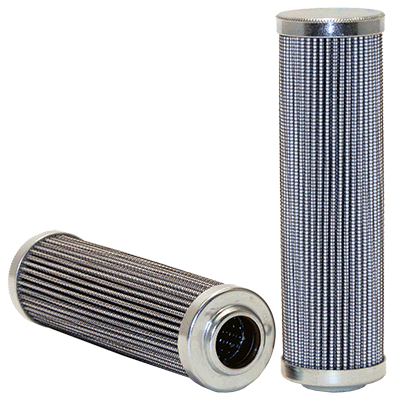

57869 | WIX | Pleated Micro-Glass Element | OFS # 97-05-0045
***Image may vary***

57869 | WIX | OFS # 97-05-0045

  • $67.91


Lead Time: Usually Ships In 24-28 Hours


Performance Data
Micron Rating: 3.00 ABSOLUTE

Beta Rating: B3 = 200

Collapse Pressure Rating: 3000 PSID

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 50 PSID



Dimensional Specifications
Outer Diameter, Top: 1.86 IN (47.24 MM)

Outer Diameter, Bottom: 1.86 IN (47.24 MM)

Inner Diameter, Top: 0.88 IN (22.35 MM)

Inner Diameter, Bottom:

Length: 6.02 IN (152.91 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: VITON

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: MICROGLASS

Filter Area: SQ.IN.

Plating: ZINC PLATED

Outer Jacket: NONE - NONE

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 1.00 LB (0.45 KG)
