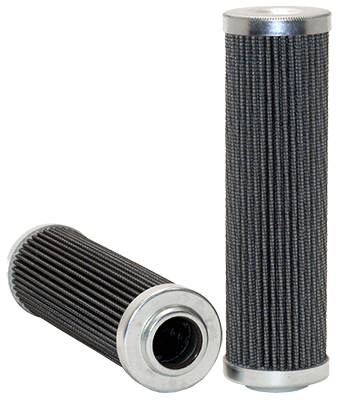

57865 | WIX | Pleated Wire Element | OFS # 97-06-0204
***Image may vary***

57865 | WIX | Pleated Wire Element | OFS # 97-06-0204

  • $54.72


PLEATED WIRE ELEMENT

Lead Time: Usually Ships In 24-28 Hours


Performance Data
Micron Rating: 25.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature: 250 F

Direction of Flow: IN-OUT

Recommended Changeout Differential Pressure: 25 PSID



Dimensional Specifications
Outer Diameter, Top: 1.75 IN (44.45 MM)

Outer Diameter, Bottom:

Inner Diameter, Top: 0.78 IN (19.81 MM)

Inner Diameter, Bottom:

Length: 6.50 IN (165.10 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: 304 SS WIRE

Filter Area: SQ.IN.

Plating: ZINC PLATED

Outer Jacket: NONE

Configuration:



Packaging Specifications
Number per Carton: 1

Carton Weight: 2.00 LB (0.91 KG)
