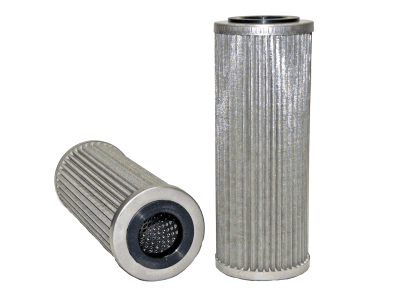

57843 | WIX | Pleated Wire Element | OFS # 97-06-0039
***Image may vary***

57843 | WIX | Pleated Wire Element | OFS # 97-06-0039

  • $43.69


PLEATED WIRE ELEMENT

Lead Time: Usually Ships In 24-28 Hours


Performance Data
Micron Rating: 150.00 ABSOLUTE

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 275 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 25 PSID



Dimensional Specifications
Outer Diameter, Top: 3.38 IN (85.85 MM)

Outer Diameter, Bottom: 3.38 IN (85.85 MM)

Inner Diameter, Top: 1.63 IN (41.40 MM)

Inner Diameter, Bottom: 1.63 IN (41.40 MM)

Length: 9.25 IN (234.95 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: 304 SS WIRE

Filter Area: 2.3 SQ.FT.

Plating: ZINC PLATED

Outer Jacket: NONE - NONE

Configuration: DOUBLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 3.00 LB (1.36 KG)
