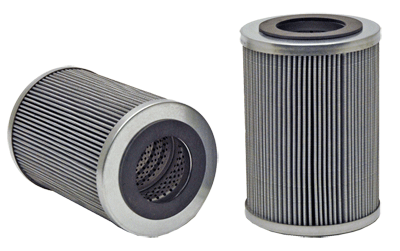

57808 | WIX | Pleated Micro-Glass Element | OFS # 97-05-0650
***Image may vary***

57808 | WIX | OFS # 97-05-0650

  • $113.76


Lead Time: Usually Ships In 24-48 Hours


Performance Data
Micron Rating: 25.00 ABSOLUTE

Beta Rating: B25=200

Collapse Pressure Rating: 150 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 50 PSID



Dimensional Specifications
Outer Diameter, Top: 4.48 IN (113.79 MM)

Outer Diameter, Bottom: 4.48 IN (113.79 MM)

Inner Diameter, Top: 2.35 IN (59.69 MM)

Inner Diameter, Bottom: 2.35 IN (59.69 MM)

Length: 6.54 IN (166.12 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: MICROGLASS

Filter Area: N/A

Plating: ZINC

Outer Jacket: NONE

Configuration: DOUBLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 3.00 LB (1.36 KG)
