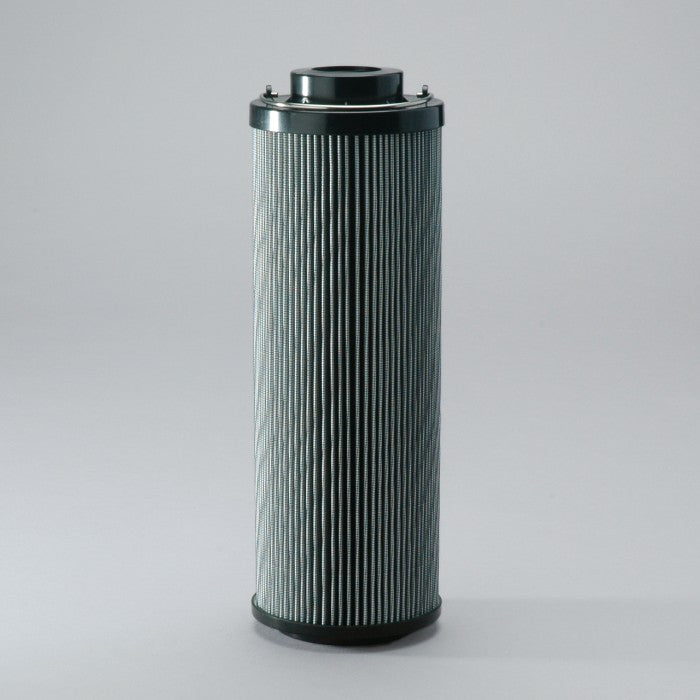

57775 | WIX | OFS # 97-05-0298

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 10.00 ABSOLUTE

Beta Rating: B12=200

Collapse Pressure Rating: 435 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 50 PSID

Additional Notes: REPLACES HYCON PART NUMBER 0660R010BN/HC RETURN LINE

Dimensional Specifications
Outer Diameter, Top: 4.49 IN (114.05 MM)

Outer Diameter, Bottom: 4.49 IN (114.05 MM)

Inner Diameter, Top: 2.71 IN (68.83 MM)

Inner Diameter, Bottom:

Length: 13.09 IN (332.49 MM)

Thread: NONE

Physical Specifications
Handle: YES

Seal Material: VITON

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: MICROGLASS

Filter Area: 9773 SQ.CM.

Plating: ZINC PLATED

Outer Jacket: NONE - NONE

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 5.00 LB (2.27 KG)
