57766 | WIX | Pleated Micro-Glass Element | OFS # 97-05-0384

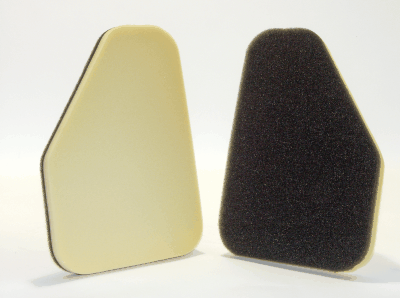

***Image may vary***

57766 | WIX | OFS # 97-05-0384

  • $265.12


Lead Time: Usually Ships In 24-28 Hours


Performance Data
Micron Rating: 3.00 ABSOLUTE

Beta Rating: B3=200

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 50 PSID



Dimensional Specifications
Outer Diameter, Top: 5.63 IN (143.00 MM)

Outer Diameter, Bottom: 5.63 IN (143.00 MM)

Inner Diameter, Top: 3.78 IN (96.01 MM)

Inner Diameter, Bottom:

Length: 19.00 IN (482.60 MM)

Thread: NONE



Physical Specifications
Handle: YES

Seal Material: VITON

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: MICROGLASS

Filter Area: SQ.IN.

Plating: ZINC PLATED

Outer Jacket: NONE

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight:
