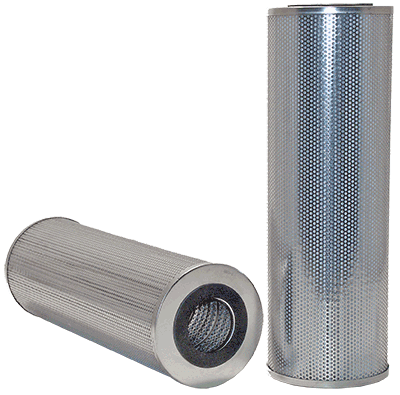

57729 | WIX | Pleated Micro-Glass Element | OFS # 97-05-2396
***Image may vary***

57729 | WIX | OFS # 97-05-2396

  • $0.00

CALL FOR PRICE

Lead Time: Please Call


Performance Data
Micron Rating: 10.00 ABSOLUTE

Beta Rating: B10=200

Collapse Pressure Rating: 150 PSID

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN



Dimensional Specifications
Outer Diameter, Top: 3.90 IN (99.06 MM)

Outer Diameter, Bottom: 3.90 IN (99.06 MM)

Inner Diameter, Top: 2.09 IN (53.09 MM)

Inner Diameter, Bottom: 2.09 IN (53.09 MM)

Length: 9.80 IN (248.92 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: VITON

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: MICROGLASS

Filter Area: N/A

Plating: ZINC PLATED

Outer Jacket: NONE

Configuration: DOUBLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight:
