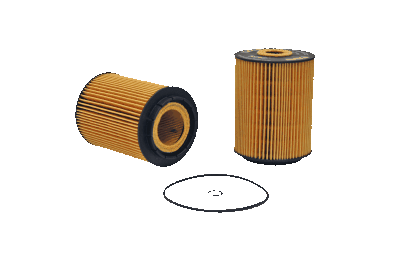

57563 | WIX | Pleated Paper Element | OFS # 97-01-1249

PLEATED PAPER ELEMENT

Lead Time: Please Call

Performance Data
Micron Rating: 0.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:

Dimensional Specifications
Outer Diameter, Top: 3.26 IN (82.80 MM)

Outer Diameter, Bottom: 3.26 IN (82.80 MM)

Inner Diameter, Top: 0.94 IN (23.88 MM)

Inner Diameter, Bottom: 1.57 IN (39.88 MM)

Length: 4.36 IN (110.74 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap:

Center Tube:

Type of Media: PAPER

Filter Area:

Plating:

Outer Jacket: NONE - NONE

Configuration: SINGLE OPEN END W/BH

Packaging Specifications
Number per Carton: 1

Carton Weight:
