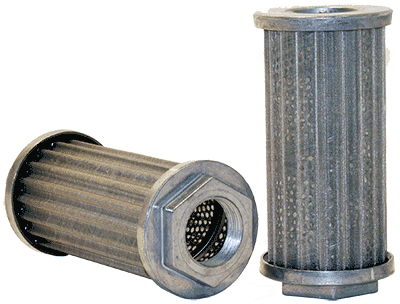

57451 | WIX | Pleated Wire Element | OFS # 97-06-0779
***Image may vary***

57451 | WIX | Pleated Wire Element | OFS # 97-06-0779

  • $25.50


PLEATED WIRE ELEMENT

Lead Time: Usually Ships In 24-28 Hours


Performance Data
Micron Rating: 140.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 25 PSID



Dimensional Specifications
Outer Diameter, Top: 3.38 IN (85.85 MM)

Outer Diameter, Bottom: 3.38 IN (85.85 MM)

Inner Diameter, Top: 1.51 IN (38.35 MM)

Inner Diameter, Bottom:

Length: 6.85 IN (173.99 MM)

Thread: 1-1/4 NPT



Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: 304 SS WIRE

Filter Area: SQ.IN.

Plating:

Outer Jacket: NONE

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight:
