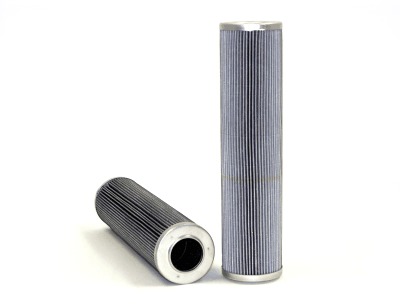

57362 | WIX | Pleated Paper Element | OFS # 97-01-3819
***Image may vary***

57362 | WIX | Pleated Paper Element | OFS # 97-01-3819

  • $0.00

CALL FOR PRICE

PLEATED PAPER ELEMENT

Lead Time: Please Call


Performance Data
Micron Rating: 0.00 NOMINAL

Beta Rating: 06=200

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Additional Notes: FULL FLOW HYDRAULIC



Dimensional Specifications
Outer Diameter, Top: 3.18 IN (80.77 MM)

Outer Diameter, Bottom: 3.18 IN (80.77 MM)

Inner Diameter, Top: 1.70 IN (43.18 MM)

Inner Diameter, Bottom:

Length: 12.94 IN (328.68 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive: EPOXY

Type of Endcap: STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: NONE

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight:
