57317 | WIX | Pleated Wire/Paper Element | OFS # 97-06-1329

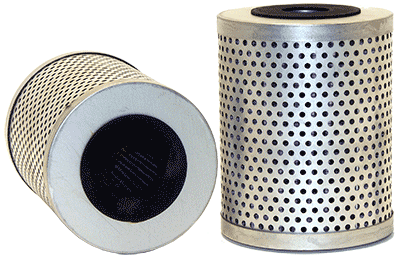

***Image may vary***

57317 | WIX | Pleated Wire/Paper Element | OFS # 97-06-1329

  • $0.00

CALL FOR PRICE

Lead Time: Please Call


Performance Data
Micron Rating: 3.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature: N/A

Direction of Flow: OUTSIDE->IN



Dimensional Specifications
Outer Diameter, Top: 4.00 IN (101.60 MM)

Outer Diameter, Bottom: 4.00 IN (101.60 MM)

Inner Diameter, Top: 1.38 IN (35.05 MM)

Inner Diameter, Bottom: 1.13 IN (28.70 MM)

Length: 5.12 IN (130.05 MM)

Thread: N/A



Physical Specifications
Handle: NONE

Seal Material: BUNA

Type of Adhesive: N/A

Type of Endcap: STEEL

Center Tube: STEEL

Type of Media: WIRE/PAPER

Filter Area: N/A

Plating: N/A

Outer Jacket: YES - PERFORATED

Configuration: DOUBLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight:
