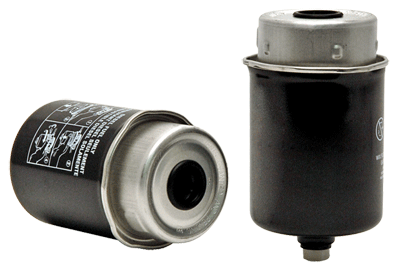

551744 | WIX | Pleated Paper Element | OFS # 97-01-0937
***Image may vary***

551744 | WIX | Pleated Paper Element | OFS # 97-01-0937

  • $10.12


PLEATED PAPER ELEMENT

Lead Time: Usually Ships In 24-28 Hours


Performance Data
Micron Rating: 10.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 2.63 IN (66.80 MM)

Outer Diameter, Bottom: 2.63 IN (66.80 MM)

Inner Diameter, Top: 1.25 IN (31.75 MM)

Inner Diameter, Bottom:

Length: 7.31 IN (185.67 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: NONE

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 5.70 LB (2.59 KG)
