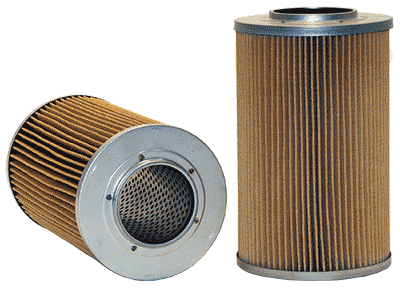

551603 | WIX | Pleated Paper Element | OFS # 97-01-0935
***Image may vary***

551603 | WIX | Pleated Paper Element | OFS # 97-01-0935

  • $27.76


PLEATED PAPER ELEMENT

Performance Data
Micron Rating: 10.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 4.50 IN (114.30 MM)

Outer Diameter, Bottom: 4.50 IN (114.30 MM)

Inner Diameter, Top: 2.22 IN (56.39 MM)

Inner Diameter, Bottom: 2.22 IN (56.39 MM)

Length: 7.44 IN (188.98 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: POLYVINYLCHLORIDE

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES

Configuration: DOUBLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 1.34 LB (0.61 KG)
