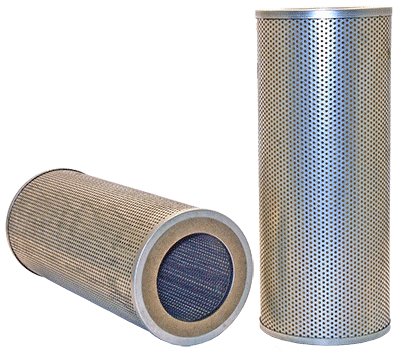

551556 | WIX | Pleated Synthetic Element | OFS # 97-28-5345

Lead Time: Please Call

Performance Data
Micron Rating: 0.00

Beta Rating: N/A

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 7.44 IN (188.98 MM)

Outer Diameter, Bottom: 7.44 IN (188.98 MM)

Inner Diameter, Top: 4.85 IN (123.19 MM)

Inner Diameter, Bottom:

Length: 18.00 IN (457.20 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: SYNTHETIC

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 7.00 LB (3.18 KG)
