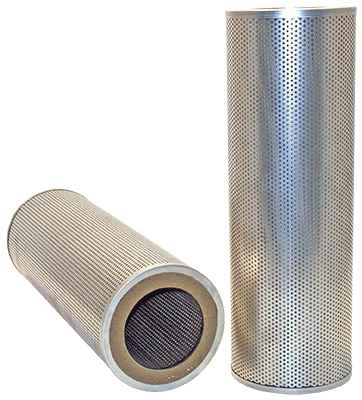

551547 | WIX | Pleated Paper Element | OFS # 97-28-1967

PLEATED PAPER ELEMENT

Performance Data
Micron Rating: 25.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 7.44 IN (188.98 MM)

Outer Diameter, Bottom: 7.44 IN (188.98 MM)

Inner Diameter, Top: 4.75 IN (120.65 MM)

Inner Diameter, Bottom:

Length: 22.00 IN (558.80 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 7.70 LB (3.49 KG)
