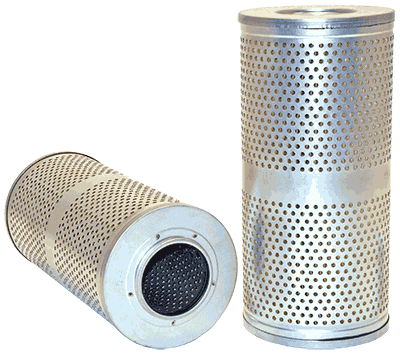

551542 | WIX | OFS # 97-05-0590

Performance Data
Micron Rating: 20.00 ABSOLUTE

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 50 PSID

Dimensional Specifications
Outer Diameter, Top: 4.48 IN (113.79 MM)

Outer Diameter, Bottom: 4.48 IN (113.79 MM)

Inner Diameter, Top: 2.30 IN (58.42 MM)

Inner Diameter, Bottom:

Length: 9.72 IN (246.89 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube:

Type of Media: MICROGLASS

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 1.90 LB (0.86 KG)
