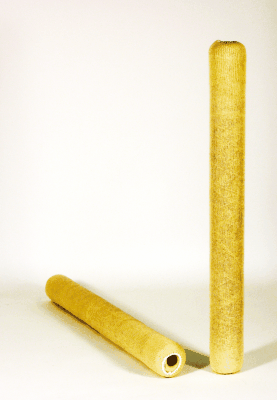

551509 | WIX | Pleated Paper Element | OFS # 97-01-0917

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 25.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 3.31 IN (84.07 MM)

Outer Diameter, Bottom: 3.31 IN (84.07 MM)

Inner Diameter, Top: 1.19 IN (30.23 MM)

Inner Diameter, Bottom: 1.13 IN (28.70 MM)

Length: 8.88 IN (225.55 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 9.80 LB (4.45 KG)
