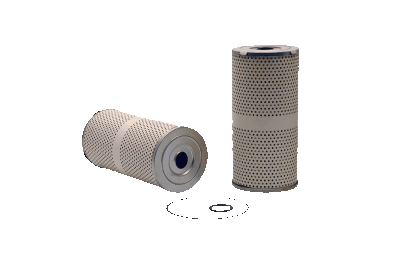

551439 | WIX | Pleated Micro-Glass Element | OFS # 97-28-2187
***Image may vary***

551439 | WIX | OFS # 97-28-2187

  • $70.49


Lead Time: Usually Ships In 24-28 Hours


Performance Data
Micron Rating: 25.00 ABSOLUTE

Beta Rating: B25=200

Collapse Pressure Rating: 150 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 4.38 IN (111.25 MM)

Outer Diameter, Bottom: 4.38 IN (111.25 MM)

Inner Diameter, Top: 2.44 IN (61.98 MM)

Inner Diameter, Bottom: 0.75 IN (19.05 MM)

Length: 16.00 IN (406.40 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: CORROSION RESISTANT STEEL

Center Tube: CORROSION RESISTANT STEEL

Type of Media: MICROGLASS

Filter Area: SQ.IN.

Plating: ZINC PLATED

Outer Jacket: YES

Configuration: DOUBLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 3.40 LB (1.54 KG)
