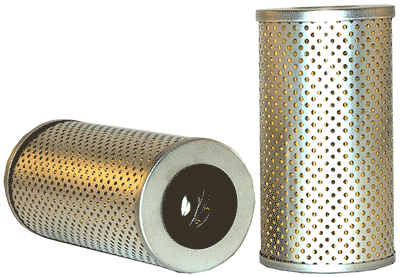

551089 | WIX | Pleated Paper Element | OFS # 97-01-0687
***Image may vary***

51089 | WIX | Pleated Paper Element | OFS # 97-01-0687

  • $19.66





OLD NUMBER WAS- 551089

PLEATED PAPER ELEMENT

Lead Time: Usually Ships In 24-28 Hours


Performance Data
Micron Rating: 25.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Additional Notes: REPLACES BALDWIN FILTERS INC 12658 P/N PT-480



Dimensional Specifications
Outer Diameter, Top: 2.97 IN (75.44 MM)

Outer Diameter, Bottom: 2.90 IN (73.66 MM)

Inner Diameter, Top: 1.04 IN (26.42 MM)

Inner Diameter, Bottom:

Length: 5.65 IN (143.51 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 6.00 LB (2.72 KG)
