551083 | WIX | Pleated Paper Element | OFS # 97-01-0860
***Image may vary***

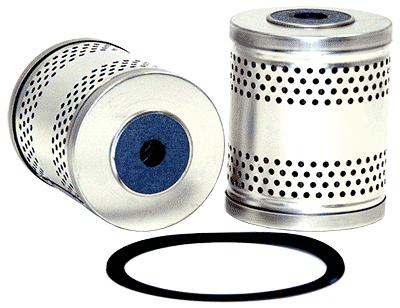

551083 | WIX | Pleated Paper Element | OFS # 97-01-0860

  • $11.75


PLEATED PAPER ELEMENT

Lead Time: Usually Ships In 24-28 Hours


Performance Data
Micron Rating: 25.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 3.47 IN (88.14 MM)

Outer Diameter, Bottom:

Inner Diameter, Top: 0.53 IN (13.46 MM)

Inner Diameter, Bottom: 0.81 IN (20.57 MM)

Length: 4.19 IN (106.43 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration:



Packaging Specifications
Number per Carton: 1

Carton Weight: 5.20 LB (2.36 KG)
