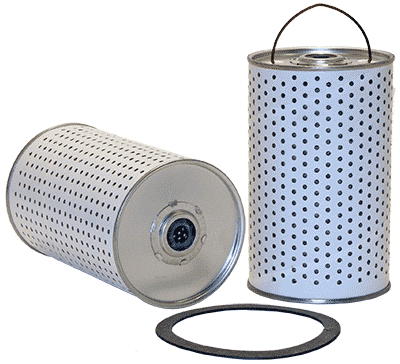

551005 | WIX | Depth Type Element | OFS # 97-10-0161
***Image may vary***

551005 | WIX | Depth Type Element | OFS # 97-10-0161

  • $0.00

CALL FOR PRICE

Lead Time: Please Call


Performance Data
Micron Rating: 0.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 25 PSID



Dimensional Specifications
Outer Diameter, Top: 3.97 IN (100.84 MM)

Outer Diameter, Bottom: 3.97 IN (100.84 MM)

Inner Diameter, Top: 0.71 IN (18.03 MM)

Inner Diameter, Bottom: 0.71 IN (18.03 MM)

Length: 6.11 IN (155.19 MM)

Thread: NONE



Physical Specifications
Handle: YES

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube:

Type of Media:

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: DOUBLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 1.00 LB (0.45 KG)
