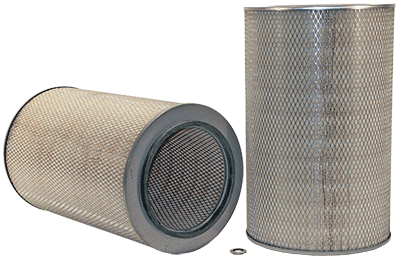

546820 | WIX | Intake Air Filter Element | OFS # 97-28-1398
***Image may vary***

546820 | WIX | OFS # 97-28-1398

  • $134.96


Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 13.81 IN (350.77 MM)

Outer Diameter, Bottom: 13.81 IN (350.77 MM)

Inner Diameter, Top: 0.88 IN (22.35 MM)

Inner Diameter, Bottom: 9.50 IN (241.30 MM)

Length: 22.50 IN (571.50 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN END/BH



Packaging Specifications
Number per Carton: 1

Carton Weight: 13.00 LB (5.90 KG)

Intake Air Filter Element
