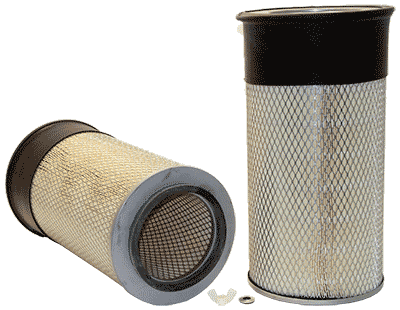

546738 | WIX | OFS # 97-22-0933

Lead Time: Please Call

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 9.14 IN (232.16 MM)

Outer Diameter, Bottom: 9.14 IN (232.16 MM)

Inner Diameter, Top: 5.87 IN (149.10 MM)

Inner Diameter, Bottom: 0.90 IN (22.86 MM)

Length: 18.48 IN (469.39 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE / BOLT HOLE

Packaging Specifications
Number per Carton: 1

Carton Weight: 7.00 LB (3.18 KG)

Intake Air Filter Element
