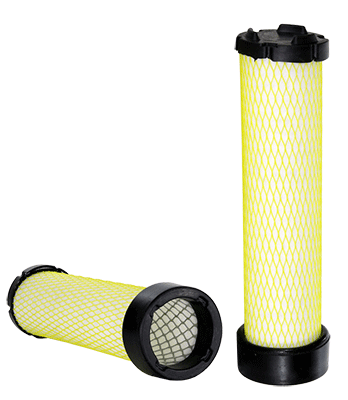

546490 | WIX | Intake Air Filter Element | OFS # 97-15-0954
***Image may vary***

546490 | WIX | OFS # 97-15-0954

  • $18.08


Lead Time: Usually Ships In 24-28 Hours


Performance Data
Micron Rating: 15.00

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature: N/A

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 3.31 IN (84.07 MM)

Outer Diameter, Bottom: 3.07 IN (77.98 MM)

Inner Diameter, Top: 2.48 IN (62.99 MM)

Inner Diameter, Bottom:

Length: 11.63 IN (295.40 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: MOLDED

Type of Adhesive: N/A

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: N/A

Outer Jacket: YES

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 0.90 LB (0.41 KG)

Intake Air Filter Element
