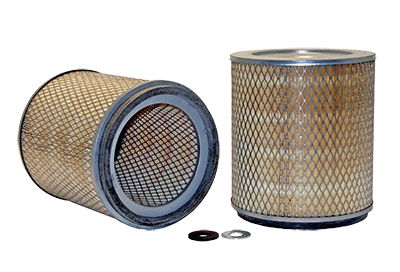

546310 | WIX | OFS # 97-22-0420

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 8.41 IN (213.61 MM)

Outer Diameter, Bottom: 8.40 IN (213.36 MM)

Inner Diameter, Top: 5.79 IN (147.07 MM)

Inner Diameter, Bottom: 0.54 IN (13.72 MM)

Length: 9.04 IN (229.62 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: NONE

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN END/ BH

Packaging Specifications
Number per Carton: 1

Carton Weight: 4.20 LB (1.91 KG)

Intake Air Filter Element
