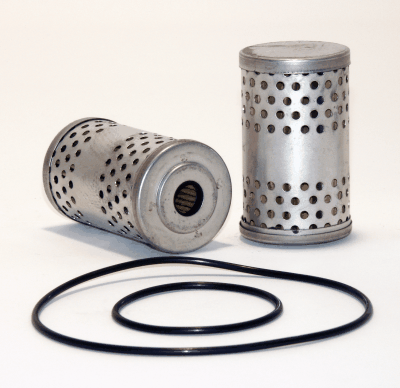

546218 | WIX | OFS # 97-22-0318

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 7.94 IN (201.68 MM)

Outer Diameter, Bottom: 7.94 IN (201.68 MM)

Inner Diameter, Top: 6.13 IN (155.70 MM)

Inner Diameter, Bottom: 6.13 IN (155.70 MM)

Length: 4.63 IN (117.60 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: MOLDED

Type of Adhesive: PLASTISOL

Type of Endcap: MOLDED

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: GLAVANIZED

Outer Jacket: YES - METAL

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 9.60 LB (4.35 KG)
