542579 | WIX | OFS # 97-22-0792

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top:

Outer Diameter, Bottom:

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 8.25 IN (209.55 MM)

Thread: N/A TUBE TYPE

Physical Specifications
Handle: NONE

Seal Material: NONE

Type of Adhesive: PLASTISOL

Type of Endcap: MOLDED

Center Tube:

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES - PAPER

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 2.80 LB (1.27 KG)

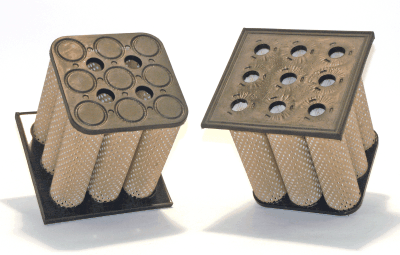

Intake Air Filter Element
