542028 | WIX | Intake Air Filter Element | OFS # 97-15-1083

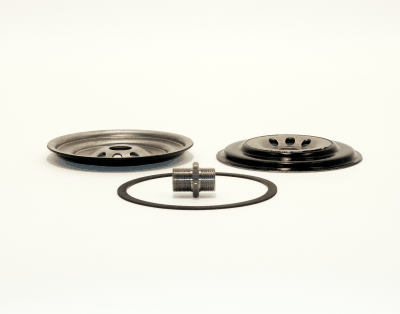

***Image may vary***

542028 | WIX | OFS # 97-15-1083

  • $139.43


Lead Time: Usually Ships In 24-28 Hours


Performance Data
Micron Rating: 15.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature: 180

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 16.35 IN (415.29 MM)

Outer Diameter, Bottom: 16.64 IN (422.66 MM)

Inner Diameter, Top: 11.95 IN (303.53 MM)

Inner Diameter, Bottom: 11.99 IN (304.55 MM)

Length: 24.00 IN (609.60 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: ISOPRENE

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: 181 SQ FT

Plating:

Outer Jacket: YES

Configuration: DOUBLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 17.00 LB (7.71 KG)

Intake Air Filter Element
